Max Neural Studio

by      Dennis Cabella

An experimental plugin that brings DLSS 5 image enhancement into 3ds Max, with Arnold and V-Ray GPU support.

1 review
5.0
downloads
770
3ds Max
2023–2027
latest version
v1.8.2
license
Free
Love this tool? Help keep it alive.

Buying it or making a donation goes straight to the developer and pays for the hours behind every new feature, fix and update you get.

DonatePayment is made with the developer directly. maxpkg does not process payments and is not responsible for purchases. See the documentation for the purchase details.
Must-Have Neural Rendering repair arnold Live Preview AI DLSS nvidia Photorealism Rendering Image Enhancement
Install

Opens the install steps and the download. You can also drag this button into the 3ds Max viewport.

Save to Favorites Donate
Screenshots

Add DLSS 5 to your 3D projects — now with V-Ray GPU support!

Max Neural Studio 1.8.1 brings DLSS 5 enhancement to your own 3D artwork in Autodesk 3ds Max, with Arnold and V-Ray GPU live previews and final render processing.

New in 1.8.1: Better floating viewport previews

Enjoy DLSS 5 live preview in floating viewports with Arnold and V-Ray GPU. Resize the window without a stretched image while the next enhanced frame is being prepared. V-Ray now shows its denoised preview before the DLSS 5 result is ready.

A new DLSS 5 LIVE PREVIEW indicator turns green while live is running and gray when stopped. The faster processing introduced in 1.8.0 is retained, along with your settings and downloaded components.

New in 1.8.0 — Faster DLSS 5 processing

Less waiting between your render and the enhanced result. Render and process now reuses the neural engine between passes in Arnold and V-Ray GPU. This update also improves Arnold’s first-pass processing and makes live preview slightly faster.

On our tested 3ds Max 2023 setup, with four passes and denoise enabled, processing after rendering dropped from approximately 90 to 21 seconds with Arnold, and from 46 to 17 seconds with V-Ray GPU. Results vary with hardware and settings. Image comparisons matched pixel-for-pixel in the tested cases.

Also included: fresh-install fixes, clearer OptiX diagnostics and driver-based external denoiser selection. Existing settings and the original runtime are preserved.

1.7.1 hotfix

This update fixes a startup issue on some portable Python installations, and removes the extra 3ds Max render window when using V-Ray Render and process. Arnold keeps its usual render window.

New in 1.7.0 — DLSS 5 meets V-Ray GPU

Use V-Ray GPU Viewport IPR or Render and process alongside the existing Arnold workflow. Denoise runs before neural enhancement, with adjustable intensity and no need to restart V-Ray IPR when switching the plugin denoise on or off. Effect ON/OFF reuses completed neural results when the image and settings are unchanged.

Compare your original render and DLSS 5 result in the comparison window, and reopen your latest render directly from the main UI.

Find your look. Keep your balance.

Take more control of DLSS 5 enhancement: choose 1 to 4 neural passes, fine-tune Effect intensity, then smoothly bring back as much of your original render as you want with Blend with original. Live blending updates while you drag, without waiting for another neural calculation.

Blend with original changes the actual final image, not just the preview. Your chosen mix applies to exported renders, images and videos. 0.00 keeps the full enhanced result; 1.00 brings back the original image before neural enhancement.

Render comparison

Your render. Two looks. One comparison window.

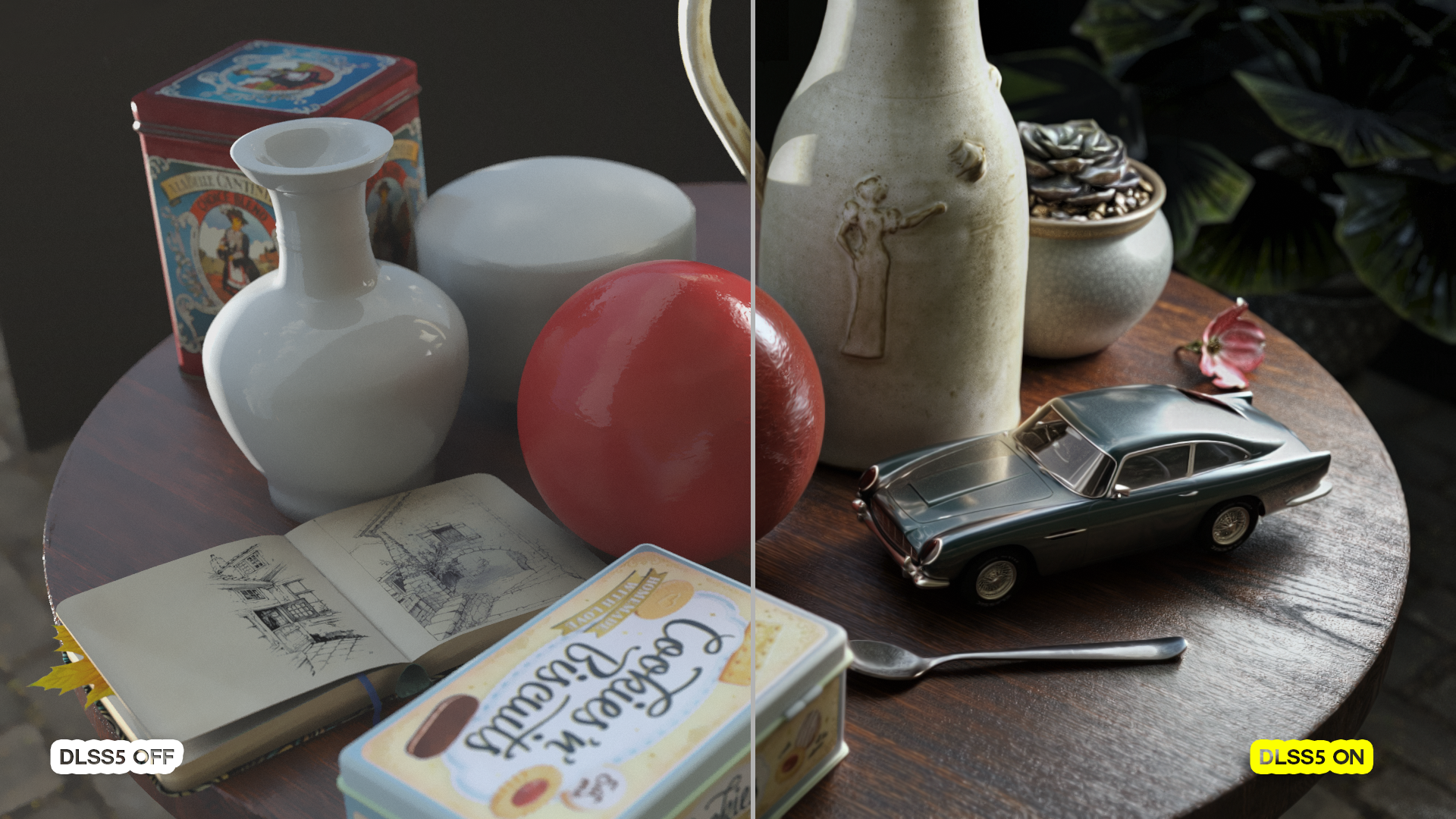

Compare your original render with DLSS 5 enhancement in the new comparison window. Switch between images or drag the divider to explore the difference — then reopen your latest result anytime with Open last render.

Live OptiX denoise + Preserve highlights

A cleaner starting point for your Arnold or V-Ray GPU workflow: watch a cleaner image develop directly in the viewport, then add the DLSS 5 neural look when you are ready.

  • Live NVIDIA OptiX denoising: works in Arnold ActiveShade even before Start live. Adjust its strength from 0.00 to 1.00; Stop live stops DLSS enhancement while OptiX remains active. It also denoises Arnold final renders before neural processing. V-Ray GPU uses a separate external OptiX denoiser for its viewport and Render and process, with the same strength control.
  • Preserve highlights: keeps bright reflections and rim lighting from becoming too muted after DLSS 5. It selectively recovers up to 90% of lost highlight luminance, with limits to retain detail and photographic contrast. Available in live preview, final renders, saved images and videos.
  • Smoother controls: Effect intensity applies changes on release, while Blend with original updates as you drag. The previous enhanced image stays visible while a new effect intensity is calculated.

Features

  • Live preview with widths of 640, 960, 1280 or 1920 px.
  • Choose 1 to 4 neural passes, each using the selected Effect intensity.
  • Independent Blend with original slider, with fast cached blending in live preview and the same mix in exported output.
  • Clean live view with editing overlays restored when live preview stops.
  • Render and process using the resolution configured in 3ds Max.
  • Process an existing image or video.
  • PNG, JPG and TIFF output for still images.
  • User-selected result and component folders.
  • Final still-image results contain the original and processed image only; successful-job temporary files are removed.

Getting started

  1. Install the MZP with Max Package Manager, then launch Max Neural Studio from its toolbar button.
  2. Click Set up / download components.... If components are missing, choose a component folder, allow the downloads, and click Download and set up automatically. You can also connect an existing runtime. Wait until the required components are available.
  3. Prepare your scene lighting and exposure, then start Arnold ActiveShade or V-Ray GPU Viewport IPR in the viewport.

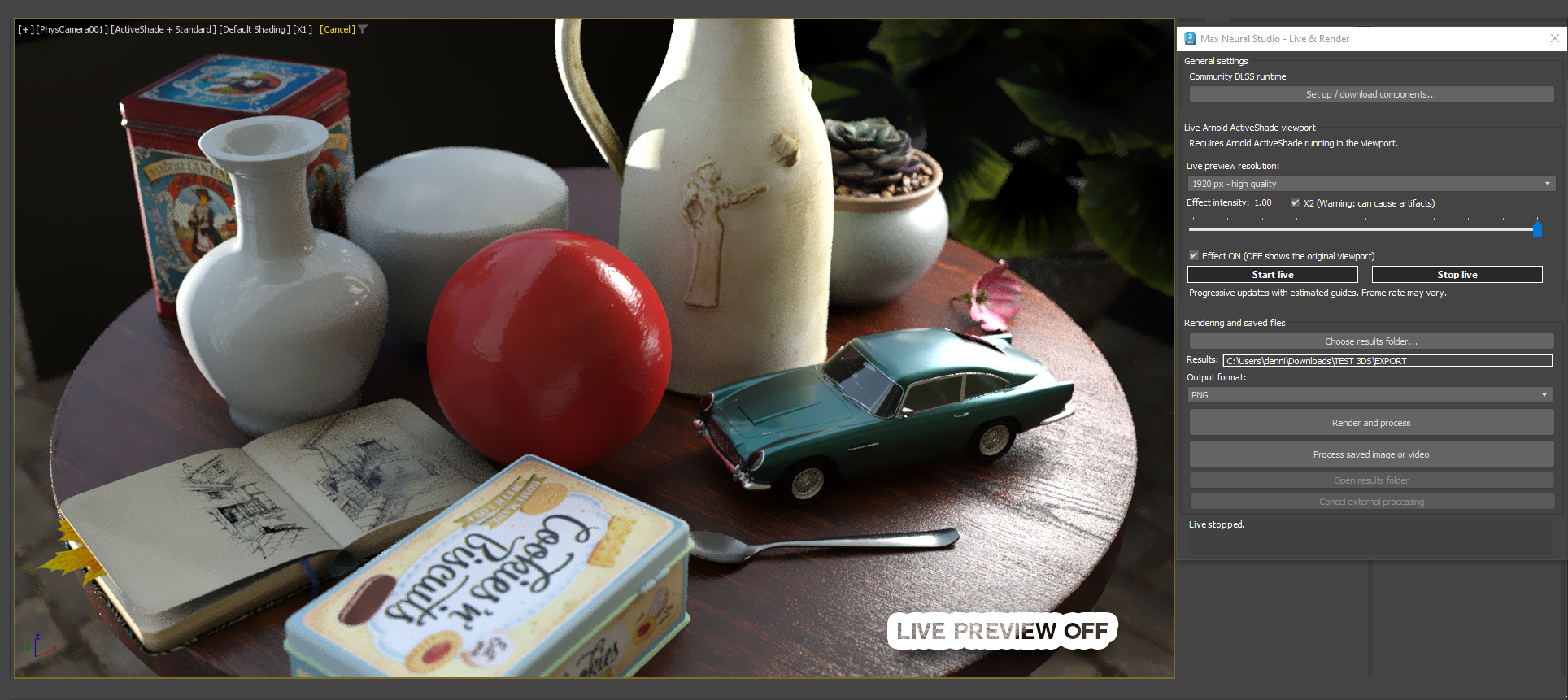

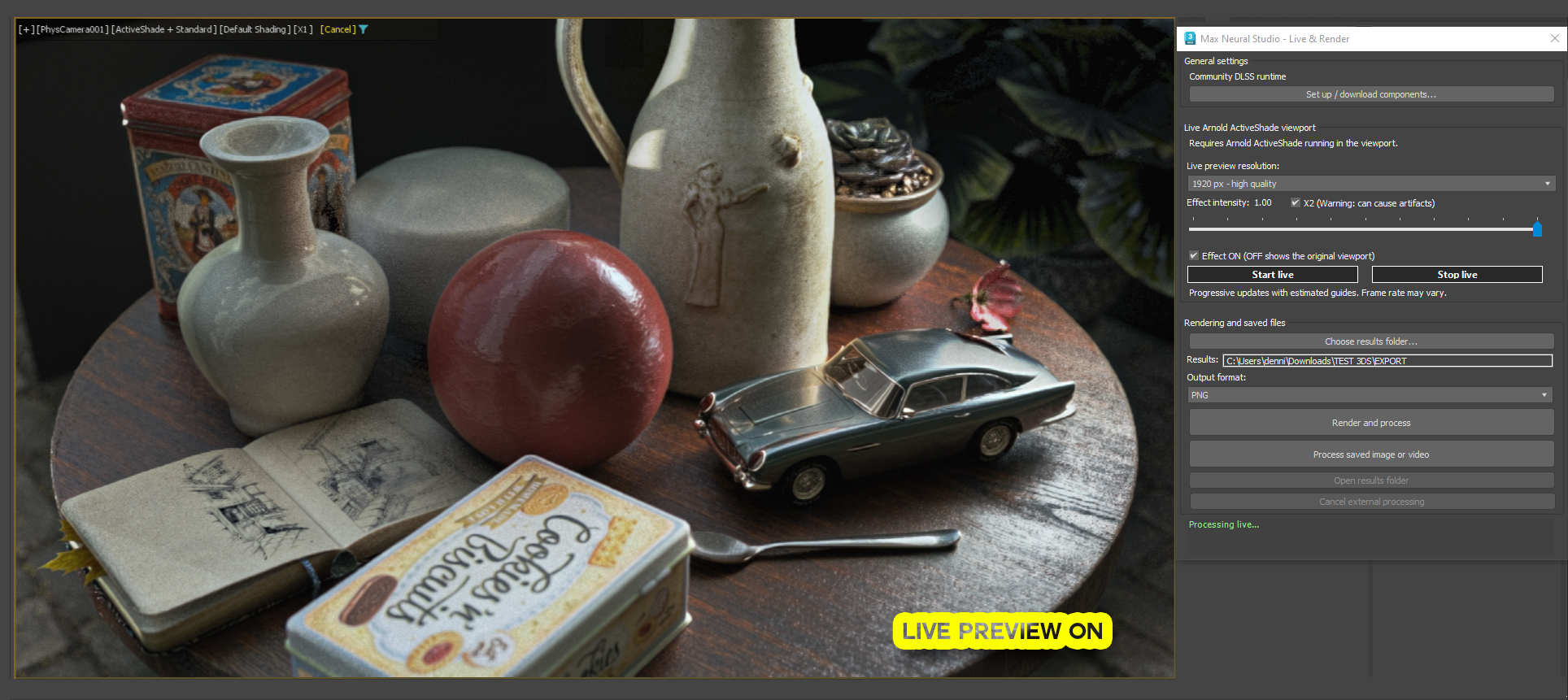

  4. Choose a live preview resolution and click Start live. The neural image updates as the renderer refines the preview. Moving the camera or changing the scene restarts enhancement for the new view.
  5. Use Effect ON to compare the enhanced image with the original renderer preview. Adjust Effect intensity to suit your scene. Choose Passes from 1 to 4, then adjust Blend with original to balance the original and enhanced result. Your choices are remembered.
  6. Once you are happy with the preview, choose a results folder and output format. Click Render and process to render at the resolution configured in 3ds Max, enhance the image, and save both the original and processed result.

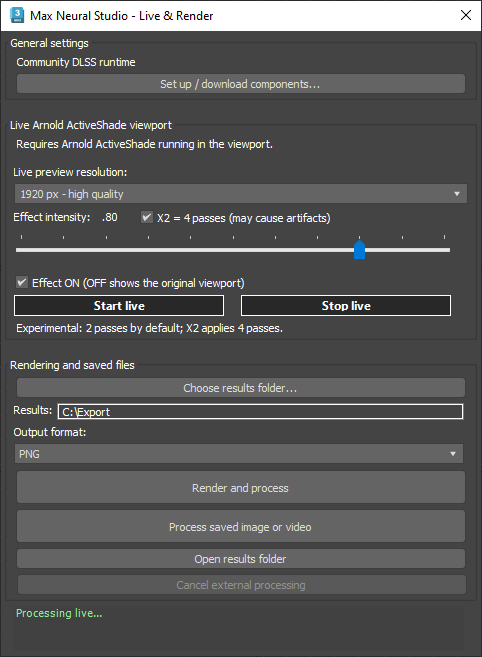

What the buttons do

  • Set up / download components... checks and configures the separate processing components.
  • Start live / Stop live starts or stops neural viewport enhancement. Arnold ActiveShade and V-Ray Viewport IPR are controlled separately in 3ds Max.
  • Effect ON switches the enhancement on or off for comparison.
  • Effect intensity adjusts the strength of neural enhancement from 0.00 to 1.00. Lower values produce a more subtle effect; higher values make the enhancement more pronounced. Adjust it to suit your scene and use Effect ON to compare with the original.
  • Passes selects 1, 2, 3 or 4 consecutive neural passes. Each pass uses the selected Effect intensity.
  • Blend with original mixes 0% to 100% of the pre-neural original into the enhanced result. It updates live from cached images and also changes the final exported render, image or video.
  • Denoise: live preview and render (Optix) enables native Arnold denoising or external OptiX for V-Ray GPU. Denoise intensity blends between the original (0.00) and full denoise (1.00). Native Arnold denoise is not applied to existing saved images or videos.
  • Preserve highlights enables highlight recovery after the final neural pass, for live and saved output.
  • Choose results folder... selects where your final images or video will be saved.
  • Render and process renders the current scene with Arnold or V-Ray GPU and processes the result.
  • Process saved image or video enhances an existing file; a saved image does not need a separate depth map.
  • Open results folder opens the completed job's output folder.
  • Cancel external processing requests cancellation of the neural processing stage. During the synchronous rendering stage, the plugin interface may be unavailable; use Esc to request interruption in 3ds Max.
  • Clear cache (from version 1.5.3) removes inactive temporary processing files. It is unavailable while a render or neural job is active; saved results, preferences and runtime components are preserved.
  • Donate opens the optional support page. The plugin is free.

Cache maintenance — version 1.5.3

Version 1.5.3 adds automatic cleanup of completed live sessions and older inactive temporary jobs, plus a Clear cache button. Maintenance runs when the plugin opens and after live processing exits. Recent failed jobs are retained for troubleshooting unless you clear them manually. Active jobs and protected output folders are excluded. The button shows Cache cleared after cleanup and returns to Clear cache when inactive work accumulates.

Tips for best results

For the best results, start with carefully crafted scene lighting and correctly configured exposure. I recommend using 3ds Max’s Physical Camera Exposure Control and adjusting it to suit your scene.

The plugin isn’t magic: it won’t turn simple shapes and flat shading into a photorealistic image. Think of it as an enhancement tool that builds on a well-prepared scene, supporting the work you’ve already put into lighting, materials, and composition.

Requirements and compatibility

Windows and Arnold or V-Ray GPU are required. V-Ray GPU 6 Hotfix 3 has been tested in 3ds Max 2023; V-Ray CPU has not been validated. OptiX denoising requires a compatible NVIDIA GPU and Arnold OptiX imager support. Video highlight recovery uses temporary decoded frames and can require substantial disk space. The plugin has been tested in 3ds Max 2023 on an NVIDIA RTX 2080 Ti. Arnold CPU and GPU workflows have both been tested on this machine; Arnold GPU worked with NVIDIA Studio Driver 581.57. Compatibility with other Max versions, GPUs and driver combinations is not guaranteed. Runtime compatibility depends on the external runtime and graphics driver.

No need to find and install the processing components manually. After installing the plugin, open Set up / download components: Setup checks what is already available and highlights anything missing. Choose a destination folder, give your download consent, then click Download and set up automatically to download and configure the required community neural runtime, Python and image libraries, FFmpeg/FFprobe, and the V-Ray external denoiser. You can also connect an existing runtime folder. The main runtime assets, Python and FFmpeg are configured through Setup; an internet connection is required for downloads. Version 1.8.0 includes an optimized neural worker and a modern external OptiX backend, and automatically prepares an isolated optimized runtime while preserving the original. Portable Python and external denoiser setup have been tested using an existing neural runtime.

Experimental processing

Processing applies your choice of 1 to 4 consecutive neural passes, with 2 as the default. Additional passes take longer and can introduce artifacts. Live preview and video use estimated guides; Arnold still renders can use the native Z pass. Processing runs locally. The integration uses a community runtime containing modified, unsigned NVIDIA components, with third-party license terms. Max Neural Studio is not an official NVIDIA product.

Free plugin by Dennis Cabella.
